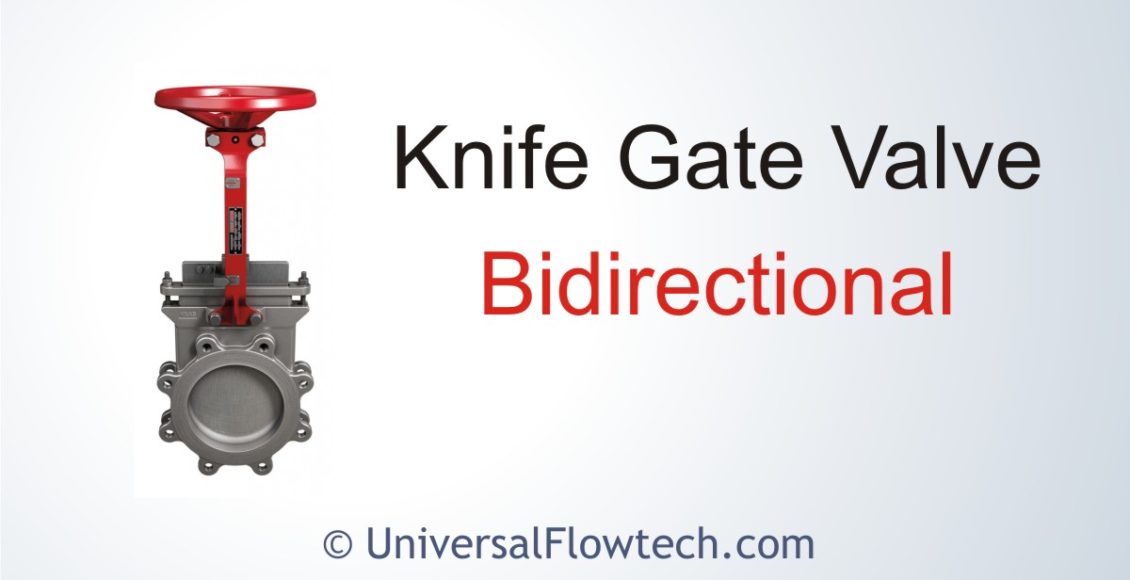

Bidirectional Knife Gate Valves

SIZE RANGE:2-36″ (50-900mm)
PRESSURE RATING:Up to 24″ (600mm) 150psi (10bar)
30-36″ (750-900mm) 100psi (7bar)
BODY STYLE:Single Piece, Wafer, Lug
SEAT OPTIONS:

Buna-N: -35°-194°F / -37°-90°C

EPDM: -65°-248°F / -54°-120°C

Viton^®: -15°-392°F / -26°-200°C

PTFE: -235°-450°F / -148°-232°C
PACKING OPTIONS:

PTFE: 232°C / 450°F

Elastomer
Quad Seal: Nitrile: 90°C / 194°F

Viton^®: 200°C / 392°F
DESIGN:MSS SP-81
TESTING:MSS SP-81
FACE TO FACE:MSS SP-81
CERTIFICATION:CE/PED, Canadian CRN
DRILLING:ASME B16.5 CL150, ASME B16.47 CL150
ACTUATOR OPTIONS:Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric
