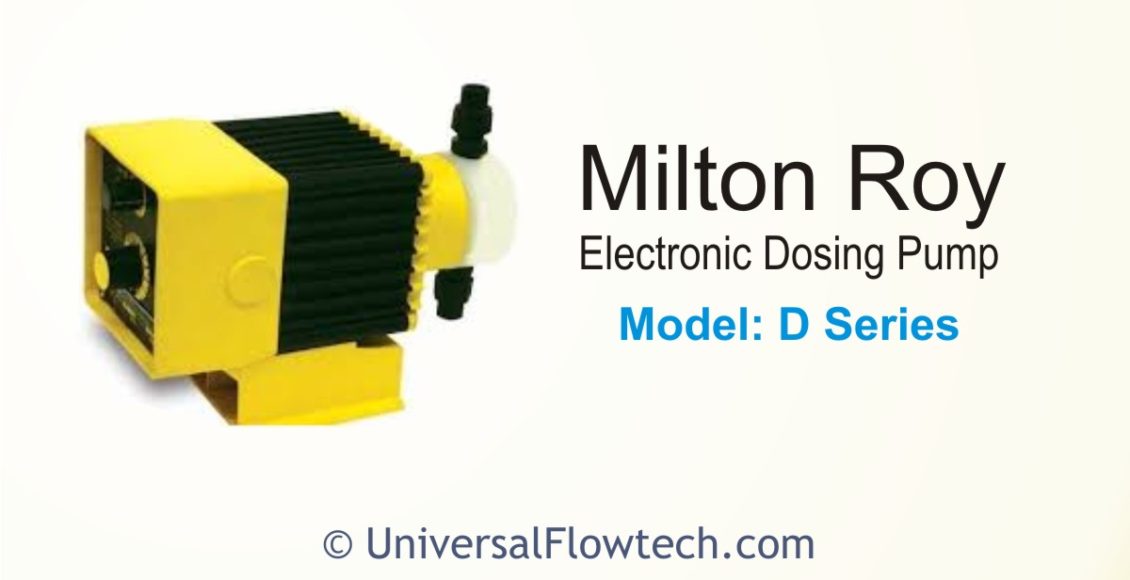

D Series-Milton Roy Electronic Dosing Pump
Key Specification Features:
- Electronically Operated Mechanically Actuated Diaphragm
- Solid state encapsulated electronics
- Compact size
- Light weight
- Low Maintenance
- High Precision ball and seats for reliable sealing
- Manual stroke length control adjustable while running
- Manual/Automatic speed control adjustable while running or stopped
- Steady State Accuracy of ±2%
- Tolerance on Max.capacity 0 to +25%
- Repeat-ability ±5%
- Composite PTFE faced Hypalon Diaphragm for longer life.
- Electro Magnetic Drive: Less moving parts.
- Low Power Consumption
- Liquid end material of construction in PP, PVC,PVDF, SS316
- Suction lift 1.5 MWC max.
Typical Dosing Pump Models:
Model No.: D-10, D-70 & D-90: (Max.Flow:5.0 [email protected] Kg/cm²)
Model No.: D-11, D-71 & D-91: (Max.Flow:12.0 [email protected] Kg/cm²)
Model No.: D-12,D-72 & D-92: (Max.Flow:17.0 [email protected] Kg/cm²)
Model No.: D-13,D-73 & D-93: (Max.Flow:35.0 [email protected] Kg/cm²)
Model No.: D-14, D-74 & D-94: (Max.Flow:90.0 [email protected] Kg/cm²)
Notes:
- Drive details: Electromagnetic Power Unit (EPU) 230V,50Hz. Single Phase AC
- Max. Speed: 100 SPM
- Discharge end Connection 1/2″ NPT(M)
- Model Suffix “L” comes with Milton Roy Standard Float Type Level Switch with in-built pump trip Eg: A13L
- Optional: Unique Four Function Valve (FFV) for Positive Anti-syphon, Priming Aid, back pressure, pressure relief available on all pumps except “V” Series and D-14 Models and pumps with rated pressure 2 Kg/cm²
- A-79 to A-73 / B-71 to B-73 / D-70 to D-74: Instrument responsive pumps will accept modulated frequency signal.
- A-99 to A-93 / B-91 to B-93 / D-90 to D-94: Instrument responsive pumps will accept 4-20mA signal.
- Pumps are provided with Foot Valve, Anti-syphon Valve and 3 meters LDPE tubing. Y strainer optional instead of Foot Valve.
-
Power Consumption:
- Approx. 40 Watts for A & V models
- Approx. 75 Watts for B models.
- Approx. 100 Watts for D models
- For “V” Series pumps speed control is not available.
- “V” Series pump is available in “PP” (Liquid end MOC) only.
- Foundation details: For A, V, B, D use four numbers 5 mm screws in slots provided.
