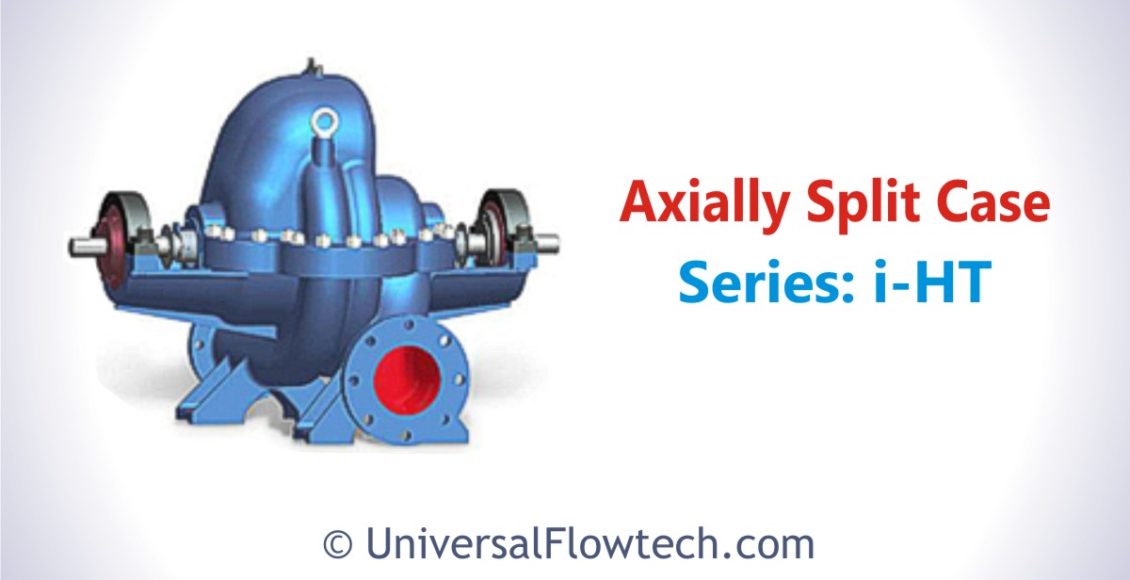

Series: i-HT Axially Split Case Pumps

iHT pumps are horizontal split case single/double stage centrifugal pumps. All single stage pumps are provided with double suction type impeller. Both single stage/double stage pumps are fitted with DIN 24960 cavity mechanical seal. The impeller/s is/are centrally placed on a sturdy designed shaft and the entire rotating assembly is dynamically balanced to provide a smooth, trouble free, longer and efficient operation.

Specifications:

  • Delivery Sizes Upto 300 mm
  • Discharge 30-1300 m3 /hr
  • Head 30 to 250 m
  • Speed 2900 rpm
  • Temperature 8 0 C – 90 0C

Features:

  • Highly efficient – low operation cost
  • Compact size and less floor space
  • Low down time – quickly fixable
  • Low prime mover cost
  • Lowest pumping – project cost
  • Dual Drive to reduce downtime

Applications:

  • Suitable for Fire fighting
  • Primary & secondary HVAC application
  • High pressure boosting system
  • Dewatering in mines
  • Cooling tower
  • Recirculation
  • Desalination
  • Water supply
  • Paper plant
  • Steel plant for high pressure injection
  • Sugar plant
  • Industrial utility water application
