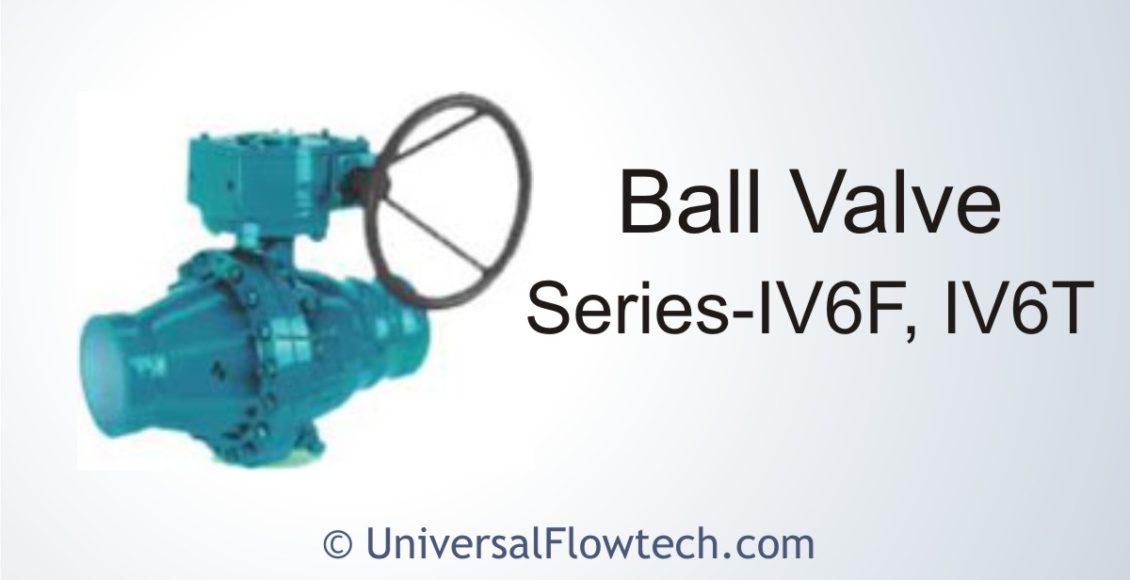

IV6F, IV6T Series Ball Valve

Ball Valve Series IV6F, IV6T

Class 600, Regular/Full Port, Flanged/Butt weld Ends, Floating Design/Trunion Mounted Design

These High Performance Ball valves are available in Class 600 for Floating as well as Trunion Design.

A floating ball design offers efficient sealing with simple construction. As the name indicates, the ball has some freedom to move along the axis of the pipeline, which offers efficient downstream sealing. When line pressure is applied to the closed ball, it moves slightly (or floats) downstream to maintain contact with the downstream seat where primary sealing occurs. A quarter turn motion from full open to full close ensures quick open-close action, an inherent advantage for automatic remote control application. Floating ball valve offers effective bi-directional sealing.



Trunion mounted design offers precise locational accuracy for the ball within the upstream and downstream seat, which ensures leak tight sealing with lower operative torques. The sealing takes place by allowing the seats to move towards the ball. This design ball valves can hold very high pressures.

Conformity to Codes & Standards:



General Design & Manufacturing EN 17292. API-6D
Valve Dimensions ANSI B 16.10/  B 16.5
Valve Inspection & Testing ·          EN 12266

·         Hydro Shell :  169 kg/sq.cm

·         Seat Test :  112 kg/sq.cm

·         Air Seat :    7 kg/sq.cm

Special Features Fire Safe to API-607, Metal to Metal Seat



Technical Specifications:



1 Valve type Floating / Trunion Mounted design ball valve
2 Body type 2 pc standard, 3 pc optional
3 Seat type Soft / Metal
4 End Connection Flanged, Butt Weld
5 Size range 15 NB to 600 NB for reduced port / full port
6 Pressure rating Class 600
7 Seat leakage Class VI – Soft seat, Class V – Metal seat
8 Operation Hand Leaver/Gear / Actuator (Electrical / Pneumatic)



Dimensions:











Standard Material of Construction:
1/ 2 Body/ Side Piece WCB, CF8, CF8M, CF3, CF3M, F304, 316, CN7M, LCB / WCC / Duplex SS
3/ 4/ 5 Trunion/ Seat
Retainer/ Stuffing Box
WCB, CF8, CF8M, CF3, CF3M
F304, F316, CN7M
6 Gland ANSI 410, 304, 316, 316L, 304L, MONEL, ALLOY20, HAST-B, C.
7 Ball ANSI 410, 304, 316, 316L, 304L, LCB / WCC / Duplex SS,
MONEL, ALLOY20, HAST-B, C.
8 Stem ANSI 410, 304, 316, 316L, 304L, MONEL, ALLOY20, HAST-B, C.
9 Seat PTFE, GFT, CFT/ Metal to Metal Delrin, Nylon.
10 Seat Spring Inconel, AISI 304.
11 “O” Ring Viton.
12 Stem Washer GFT.
13 Gland Packing PTFE, Grafoil.
14 Body Seal PTFE, Grafoil, SWG.
15 Check Nut Carbon steel, AISI 304.
16 Thrust Washer GFT.
17 Body Stud/Nut B7/2H, B8/B8M.
18/19 Stuffing Box/ Trunion Bearing AISI 316 Backed PTFE.
20/21 Stuffing Box/ Trunion Seal Grafoil, PTFE.
22 Bracket Carbon steel.
23 Gland Nut Carbon steel.
23 Belleville Spring Spring steel.
25 Antistatic Spring SS 304.
26 Gear Box Std.





NOTES:

1) Valves up to 50 NB with lever & higher sizes with gear.

2) Valves up to 50 NB are Floating Design & above 50 NB Trunion Mounted Design.

3) Flanged to ANSI B 16.10. Butt Weld End Valves Face to Face dimensions are as per BS-5351 / API-6D.

4) All sizes of ball valves can also be provided with Gear, Actuator (Electrical/ Pneumatic).

Key Features:

2/3-PIECE BALL VALVES/ 2-WAY

  • Maintenance free live loaded double sealing stem packing ensures high cycles life and positive sealing.
  • ISO 5211 Mounting Pad Allows for mounting of actuator.
  • Blow-Out Proof Stem.

Specifications & Dimensions are subject to change without prior notice
