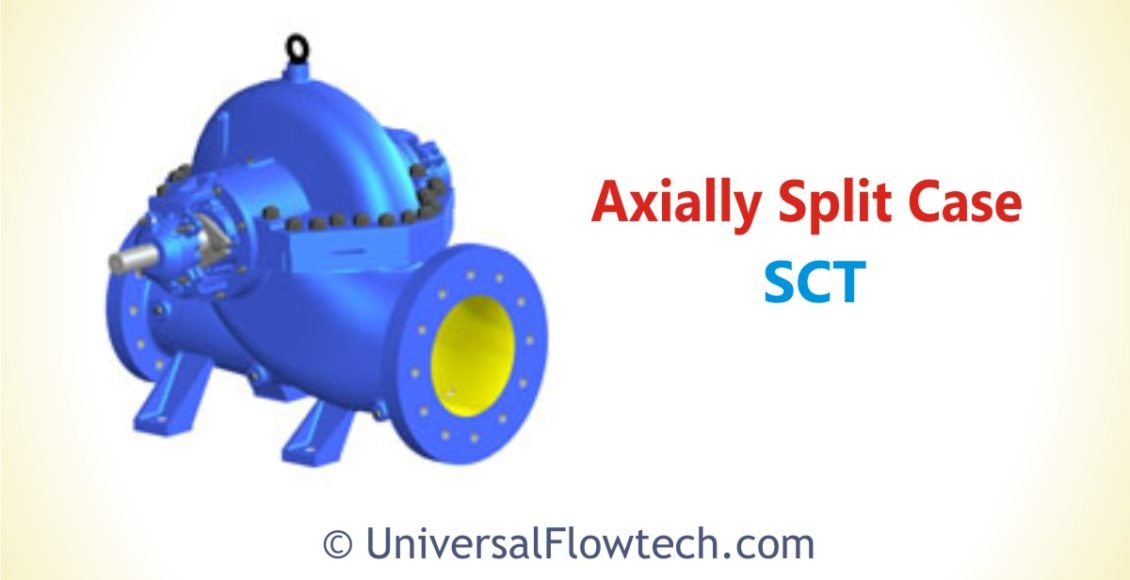

SCT Axially Split Case Pumps
These are horizontally axially split casing, single stage, double suction or single suction pumps with horizontal shaft and detachable stuffing box called insert with horizontal axially split volute type. The impeller is accurately balanced by double or single suction. These pumps are used in handling water with slight impurities, petroleum refineries, conditioning and refrigeration system and so on.
Specifications:
- Delivery size up to 350 mm
- Capacity up to 4500 m3 /hr
- Head up to 330 m
- Temperature (-) 10 °C to 100 °C
Features:
- Gland packed / Mechanical seal
- 50HZ / 60 HZ availability
Applications:
- Water/Liquids with slight impurities
- Petroleum refineries
- Air-conditioning and refrigeration systems
- Fire protection systems and mining
- Pump axis horizontal or vertical
