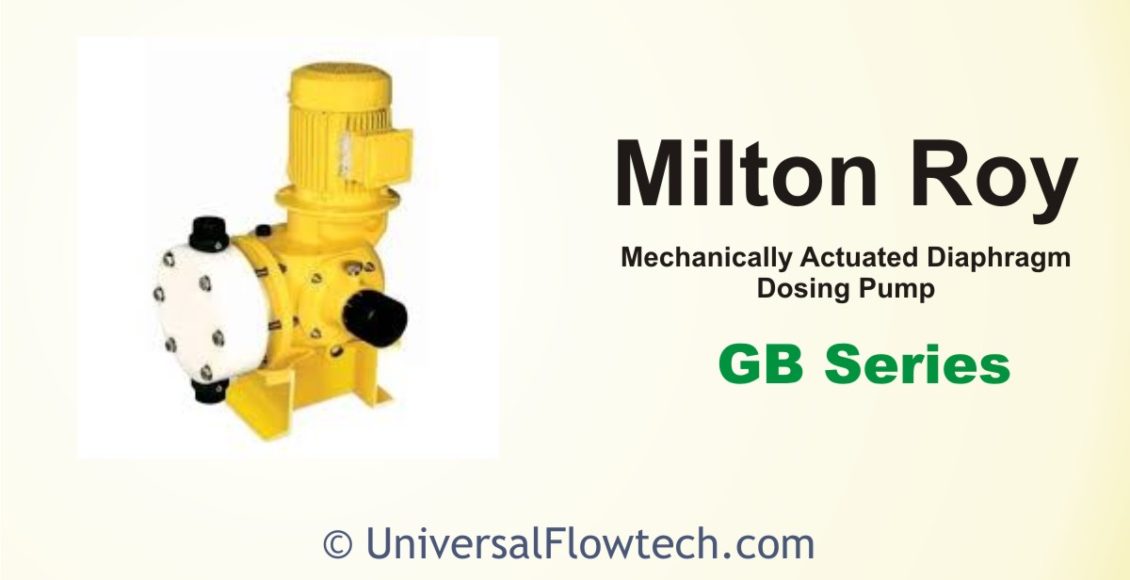

GB Series-Mechanically Actuated Diaphragm Metering Pump
Mechanically Actuated Diaphragm Metering Pump
Key Specification Features: Series GB
- Zero leakage design
- Turn down ratio 10:1
- High efficiency PTFE Diaphragm
- Variable eccentric design prevents hydraulic shock
- Rugged Construction
- Stroke adjustment can be adjusted while pump is running or stopped
- Compact size
- Oil bath lubrication for all drive components
- Liquid temperature limits (Minus 10 deg C to Plus 50 deg.C)
- Capacity adjustment by
- Lockable micrometer stroke adjustment (Std.)
- Variable speed drive (optional)
- Electric capacity control (optional)
- Liquid end material of construction in PP, PVC, SS 316 (Other MOC’s on request
- Suction lift upto 2.5 MWC
| Pump Model No. | SPM | Stroke Length (mm) | Flow (LPH) | Pressure (Kg/cm2) | |
| 0.5 H.P. Motor | 1.0 H.P. Motor | ||||
| GB 401 | 36 | 12.0 | 75 | 8 | 10 |
| GB 402 | 72 | 160 | |||
| GB 403A | 96 | 220 | |||
| GB 403 | 144 | 320 | |||
| GB 404 | 180 | 400 | |||
| GB 603 | 144 | 450 | 5 | 7 | |
| GB 604 | 180 | 560 | |||
| GB 804A | 120 | 760 | 3.5 | ||
| GB 803 | 144 | 940 | |||
| GB 804 | 180 | 1175 | |||
Motors:
- All Motors are TEFC, 415V, 3 Phase, 50Hz, Class “F”, IP55, 1440RPM
- Explosion proof Motors available on request
