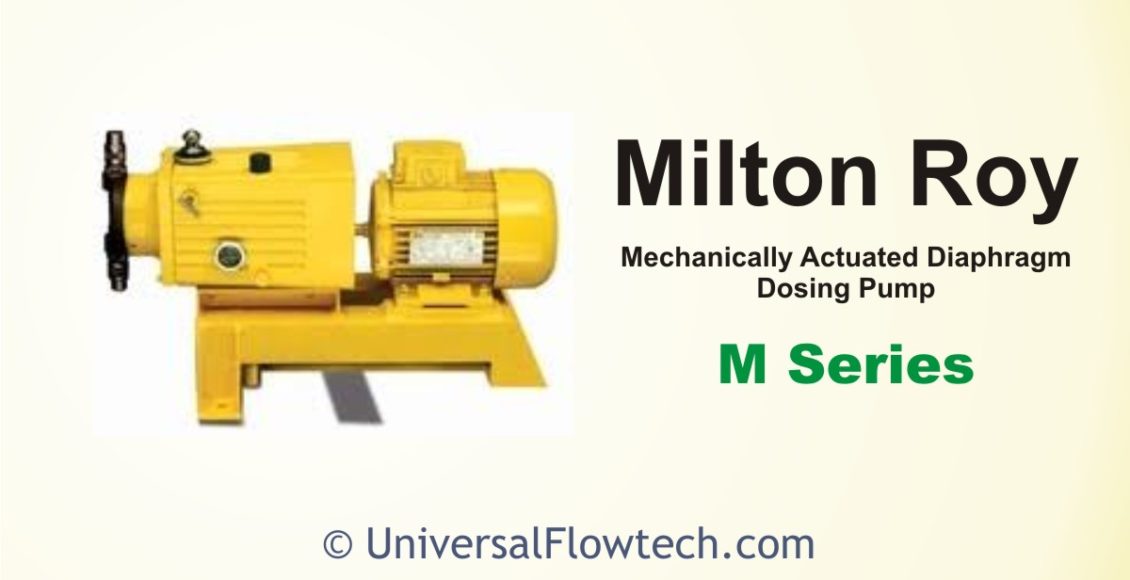

M Series-Mechanically Actuated Diaphragm Metering Pump
Mechanically Actuated Diaphragm Metering Pump
Series M
- Epoxy coated aluminium housing
- Stroke adjustment by cam and spring return mechanism
- Optional automatic control (stroke length/speed)
- Liquid end options PP, PVC, PVDF & SS 316
- Composite Fluorofilm diaphragm for reliable and leak proof operation
Key Specification Features: M-Series
- Steady state accuracy of +-1%
- Repeatability +- 3%
- Tolerance on max. capacity minus 5% to plus 10%
- Turn down ratio 10:1
- High precision balls and seats for reliable sealing and accuracy.
- Manual or automatic flow control, adjustable while running.
- Composite PTFE Hypalon Diaphragm for long life.
- Motor driven worm shaft & worm wheel drive
- Liquid end material of construction in PP, PVC, PVDF & SS 316
- Light weight aluminium alloy body
Capacity adjustment by
- Manual micrometer (std)
- Electronic capacity control (optional)
- Variable frequency drive (optional)
| Pump Model | Capacity | Pressure (Kg/cm2) | Max. Speed (SPM) | |
| Min. (LPH)
|
Max.(LPH) | |||
| M-09 | 0.5 | 5.0 | 15.0 | 48(50) |
| M-10 | 1.0 | 10.0 | 96(100) | |
| M-11 | 1.7 | 17.0 | 12.0 | 144 |
| M-12 | 3.0 | 30.0 | 10.0 | |
| M-13 | 5.0 | 50.0 | 5.0 | |
| M-14 | 10.0 | 100.0 | 3.0 | |
Motors:
- All Motors are TEFC, 415V, 3 Phase, 50Hz, Class “F”, IP55, 1440RPM
- Explosion proof Motors available on request
